Vital for rural and remote area travel, ARB bull bars will provide substantially improved protection for vulnerable mechanical components against animal strikes whilst providing a solid base for mounting other accessories like driving lights, winches and CB antennas.
ARB bars are superbly engineered and manufactured to not only maintain maximum functionality, but also to ensure they complement the look of the vehicle.
SUMMIT BULL BARS
The Summit bull bar builds on the renowned ARB Deluxe bar architecture, and integrates a fresh and contemporary design language to complement modern vehicles.
Summit bars are winch compatible and provide next generation protection and styling for your vehicle. Provisions for mounting ARB Intensity LED, IPF and Bushranger driving lights are integrated into the top pan of the bar, while ARB’s LED, indicator and clearance light assembly is included as standard.
Supplied in a durable integrit textured black powdercoat finish. Integrit is not suitable for colour coding.
Note: Bar shown with OE Suzuki fog light fitted.
FEATURES

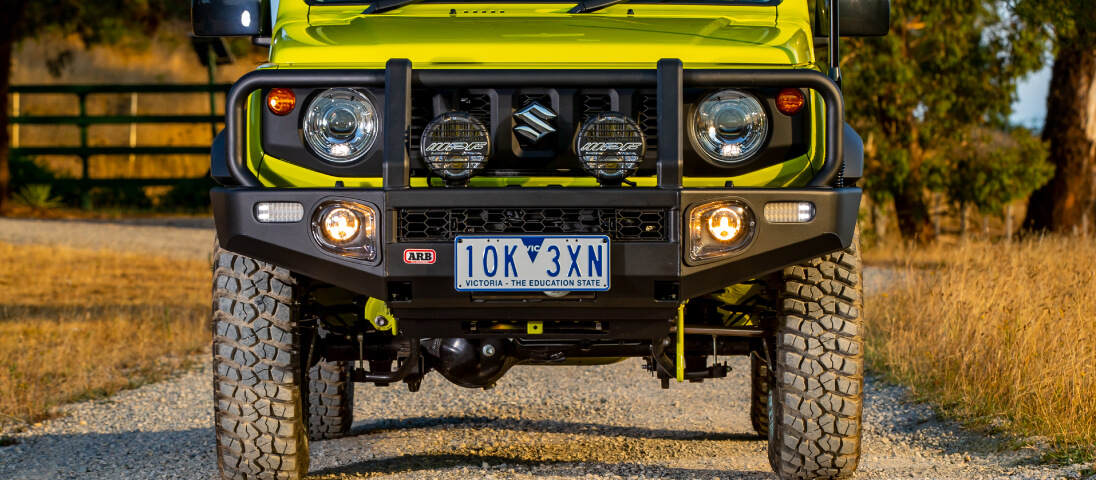

Vehicle specific design to complement the Suzuki Jimny MY19
Durable steel construction for maximum protection

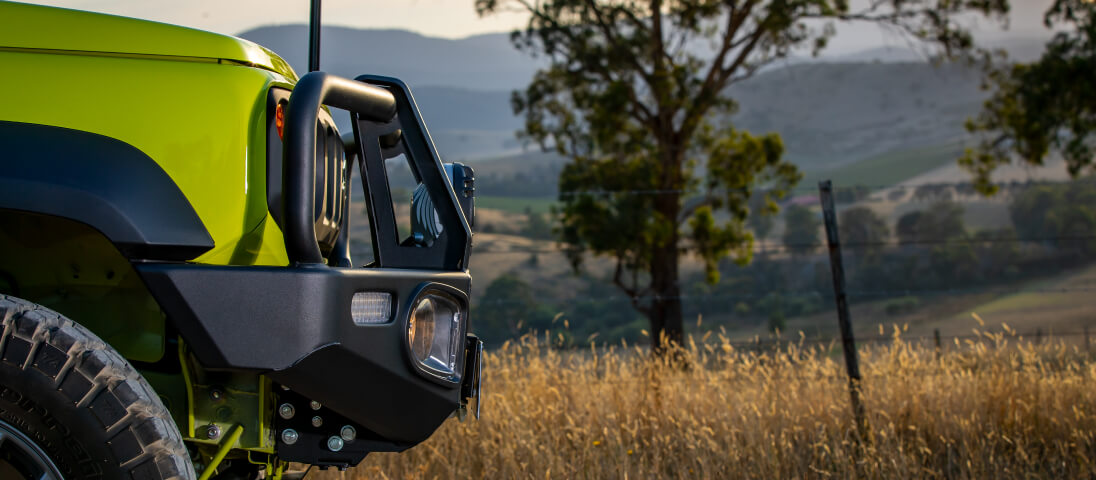

Incorporates ARB’s renowned multi-fold upswept and tapered wing design for optimum strength and approach angle
10mm radius on wings and centre section
Engineered, air bag compatible mounting system secures to chassis via high tensile M10 fasteners
Split pan design for maximum strength and airflow

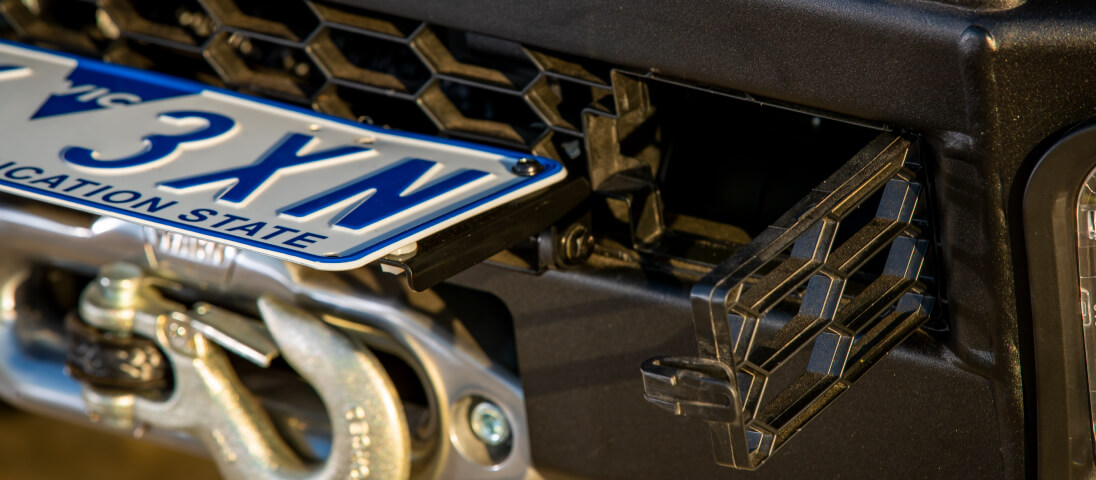

Three piece grille design for split pan
47.6mm outer tubing and centre cross bar
Formed cover straps
Pressed form top pan and aluminium winch cover panel (powder coated black)
Combination style bar to suit both winch and non winch applications
Twin ARB Jack or Hi-Lift jack points adjacent to the bar uprights

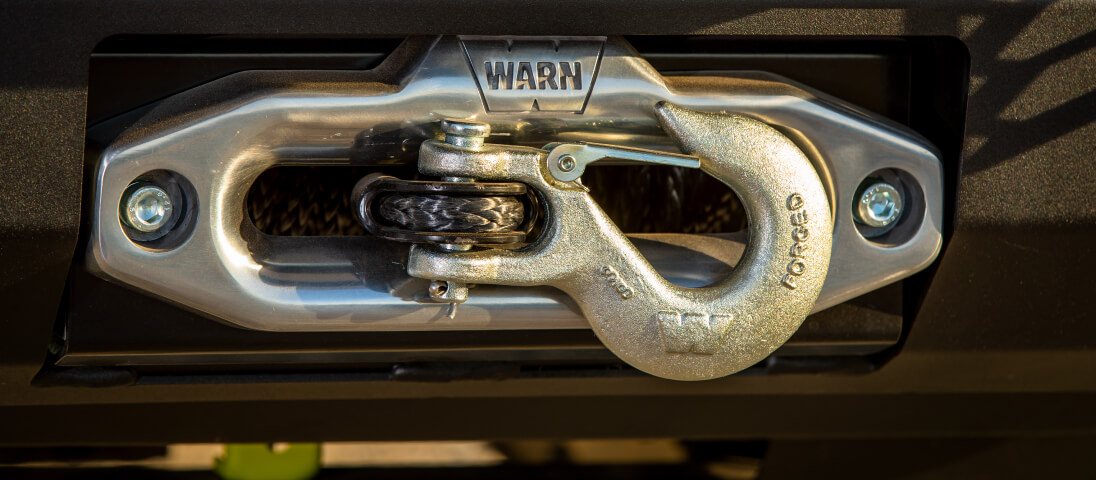

Will accommodate Warn and mid frame winches up to 8,000lb

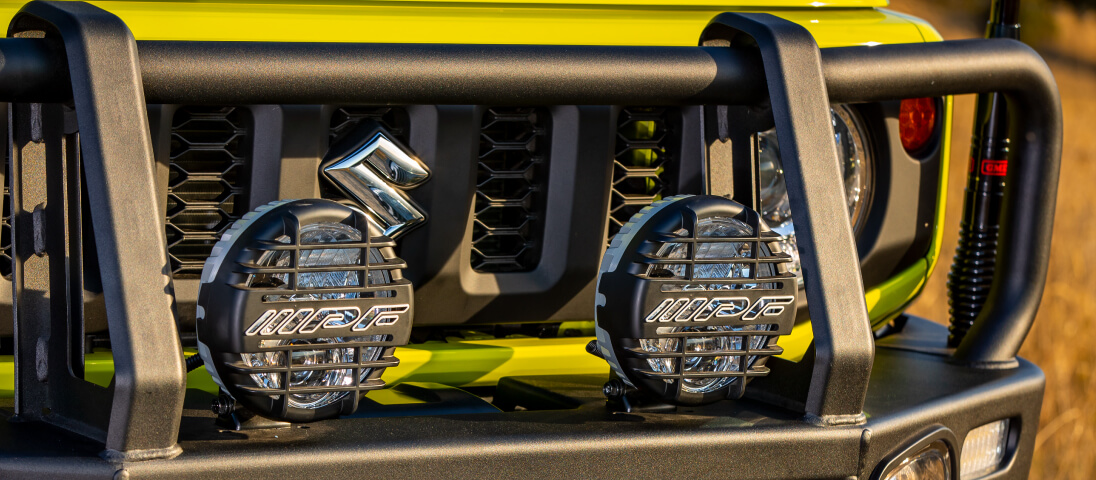

Provision to accommodate ARB Intensity LEDs and a range of IPF and Bushranger driving lights
Provision for OE headlight washers

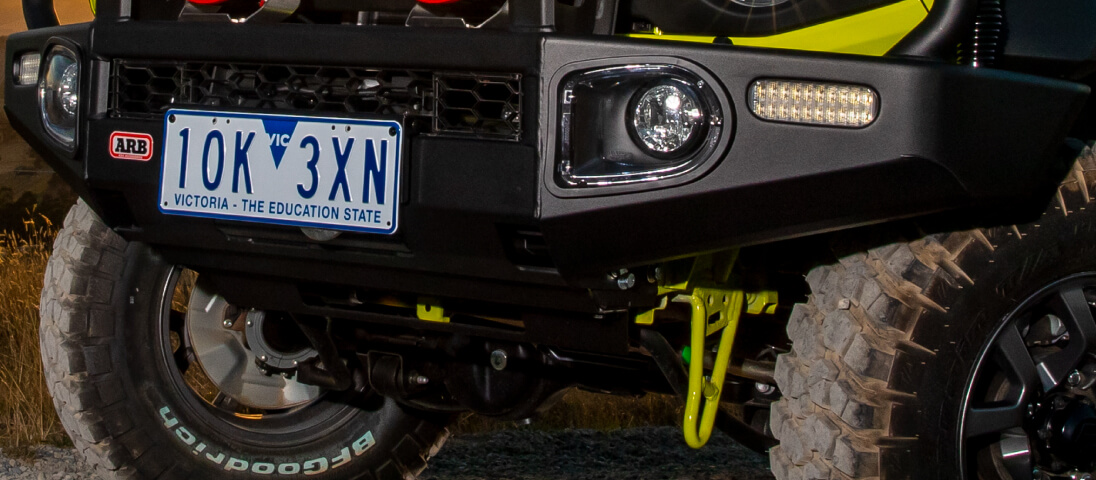

Provision for OE foglights
Provision for optional ARB Fog Light Covers
Includes ARB LED indicator & clearance light
Finished in Integrit textured black powder coat. Integrit is not suitable for colour coding.
BULL BAR PRODUCTION STEPS
Laser Cutting
Every bumper starts its life as a flat sheet of steel. Individual components are cut to shape using ARB's state of the art, computer aided laser cutters which can cut to a tolerance of just 0.2mm with no heat distortion, resulting in superior surface finishes and accuracy.
Folding
Individual components are then folded to make up the sections of the bumper using a Computer Numerically Controlled (CNC) machine which ensures maximum accuracy and consistency. Most bumpers utilise ARB's five fold design, with each fold providing additional strength.
Tube Work
ARB Bumpers are made with strong 2.6mm wall thickness tubing. The tube is cut to the desired length and bent with a CNC Eagle internal mandrel bender ensuring consistency, accuracy and an even wall thickness accross all sections.
Robot Welding
Once folded, each section is welded utilizing a robot welder. Robot welders are used for straightforward, repetitive welding jobs that require deep penetration, speed and accuracy.
Assembly
When individual components are complete, the bumper is assebled. All sections including pan, wing, uprights, outer frame and chassis brackets are placed in a jig and tack welded. This is followed by finish welding and grinding for strength and aesthetics. Jigs are assessed regularly to ensure accuracy.
Post Assembly
To complete the manufacturing process all ARB bumpers are shot blasted, before entering a 5 stage chemical wash to prepare the surface for maximum powder adhesion. They're then powder coated and oven baked to ensure a rich and durable finish. As well as being an attractive and durable finish, powder coating provides an excellent base for painting if colour coding is required.
