GETTING STUCK ISN'T AN OPTION

The next generation is here with a compact all in one motor control design for clean fitment and smooth operation. Built with top tier components and proven through rigorous testing for performance and reliability.

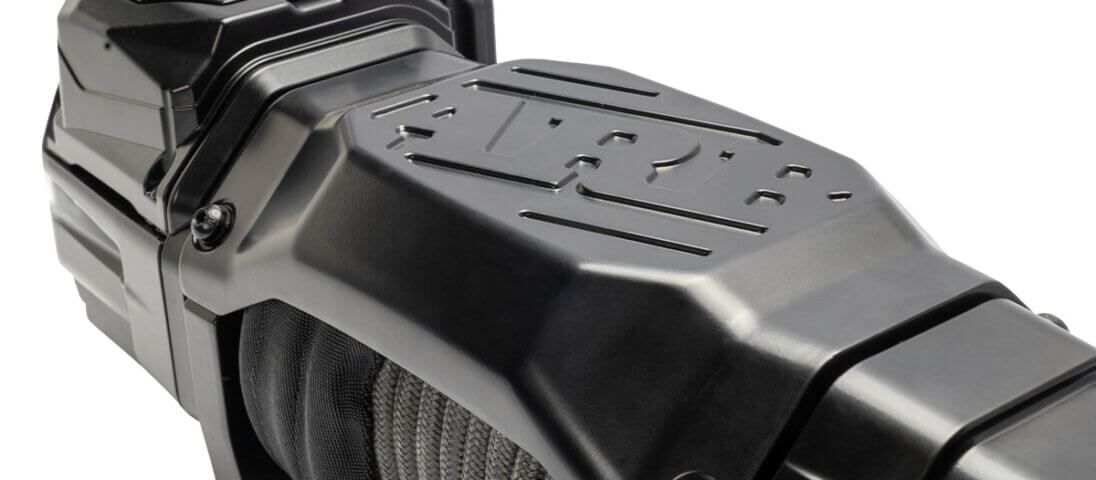

Built-In Control Box

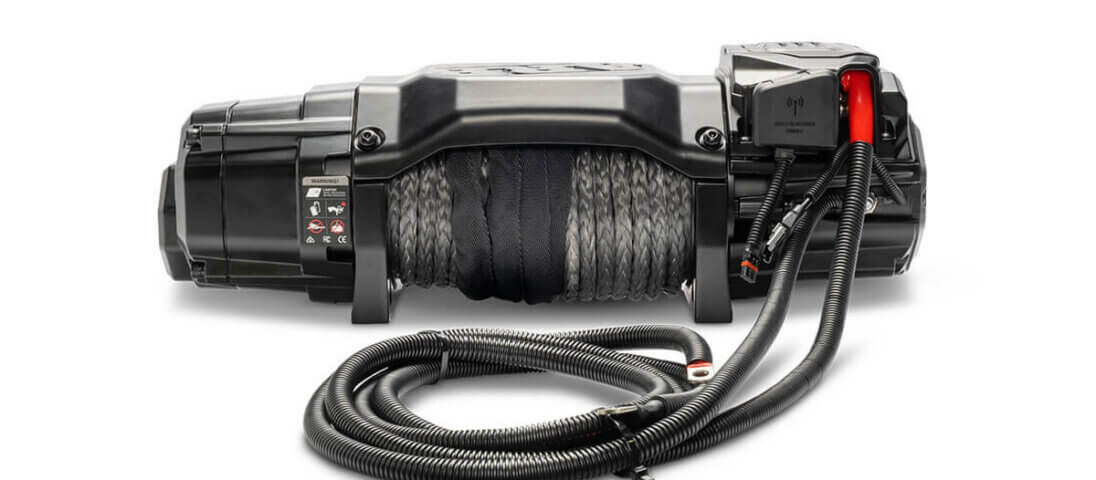

The motor control unit is integrated within the winch for a clean fit that works with modern bumpers and vehicle sensors. The direct connection contactor improves motor efficiency so the system delivers smooth power and steady control without a separate control box.

  • Custom Albright contactor built-in for seamless power
  • Compact prewired design for quick installation
  • 16-position clockable clutch handle for flexibility
  • IP68 rated for water and dust protection
  • Direct motor connection for maximum efficiency

1500x1500 Winch Image 2

1500x1500 Winch Image 1

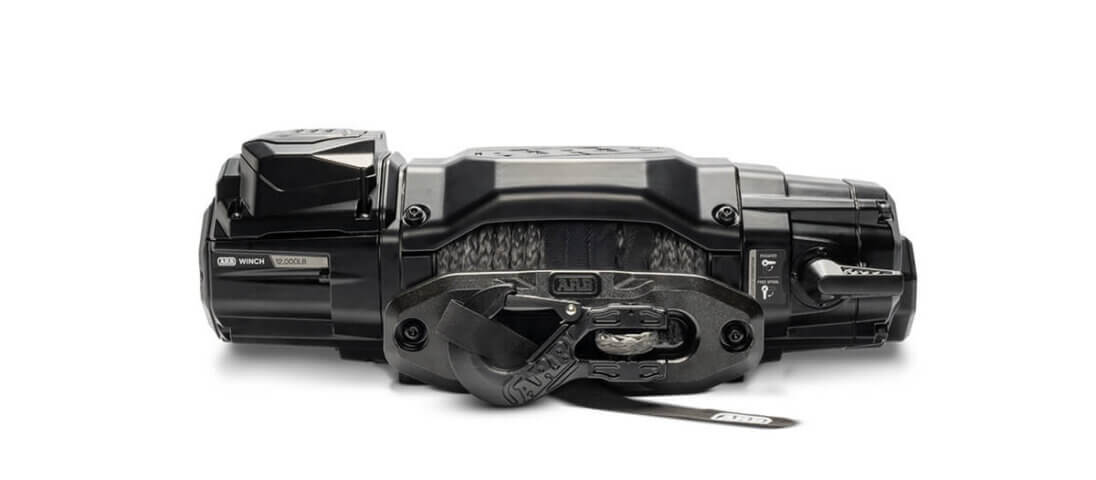

Engineered for Strength and Reliability

ARB Winch is designed with a focus on durability, reliability, and long service life. Each unit is built with top tier components and validated through rigorous testing to ensure consistent performance in tough environments.

  • 4-stage hardened steel gearbox for durability
  • One-piece bridging plate for torsional rigidity
  • Tuned 12V motor delivers fast line speed
  • Gearbox mounted brake provides 100% load holding
Icon Winch 06

Built-In Control

Custom Albright contactor with direct motor connection

Icon Winch 04

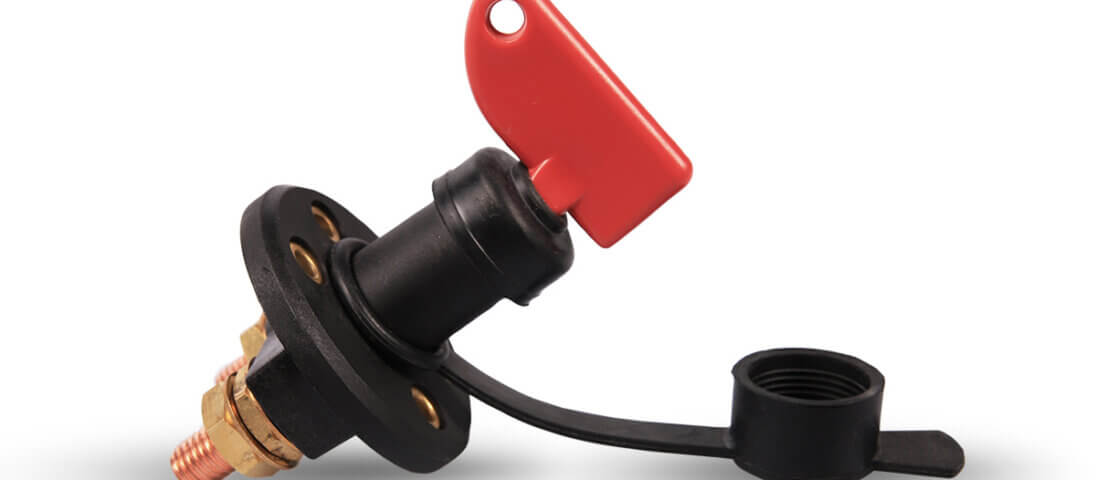

Power Isolation

500 amp switch with universal mount

Icon Winch 05

Dual Connection Remote

Wireless or wired controller with 2.4 GHz secure link

Icon Winch 01

4-Stage Gearbox

Increased line speed with efficient current draw

winch-gallery-01
winch-gallery-02
winch-gallery-03
winch-gallery-04

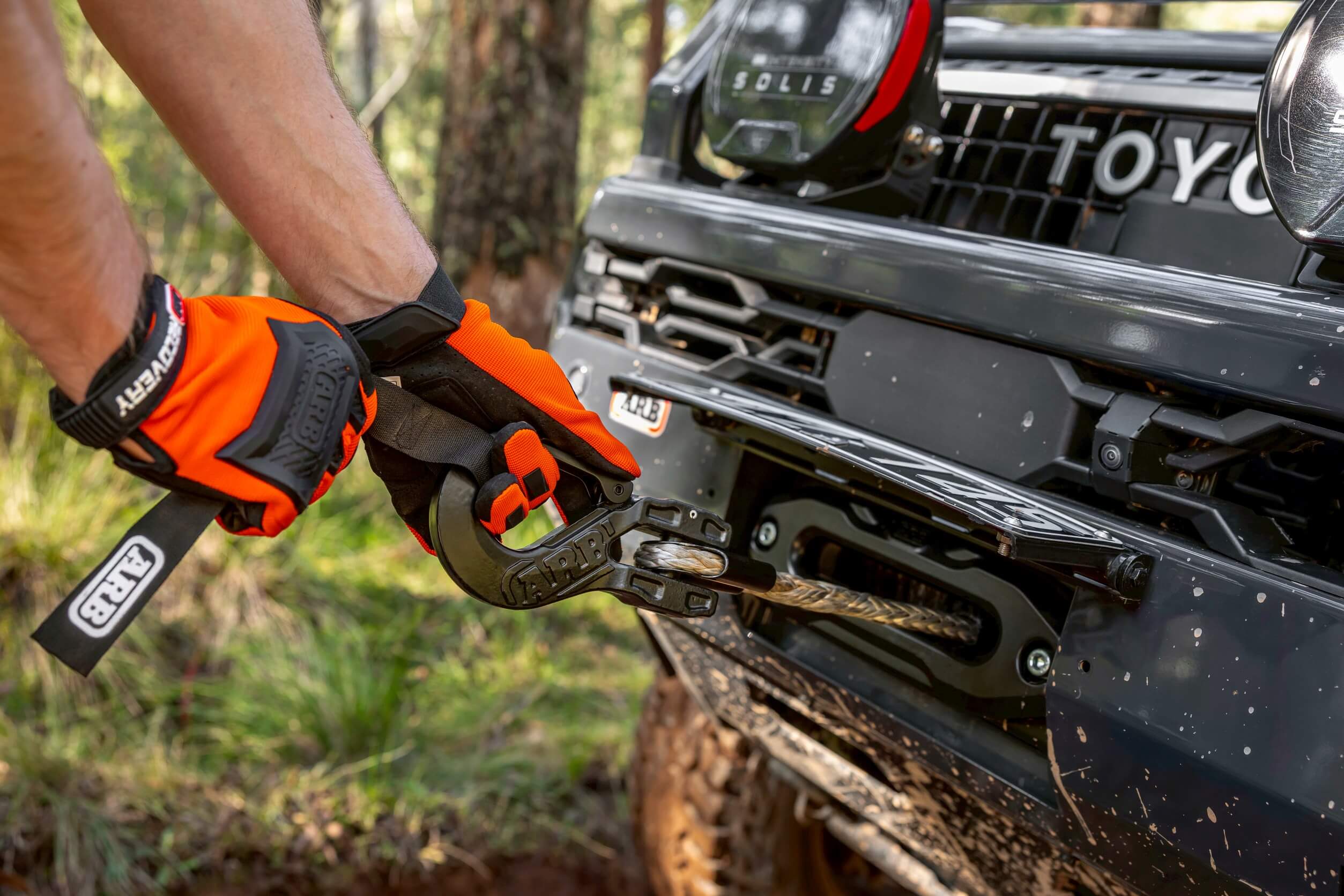

line_oa_chat_260428_145218
line_oa_chat_260428_145239
line_oa_chat_260428_145245
line_oa_chat_260428_145252

Control The Way You Want

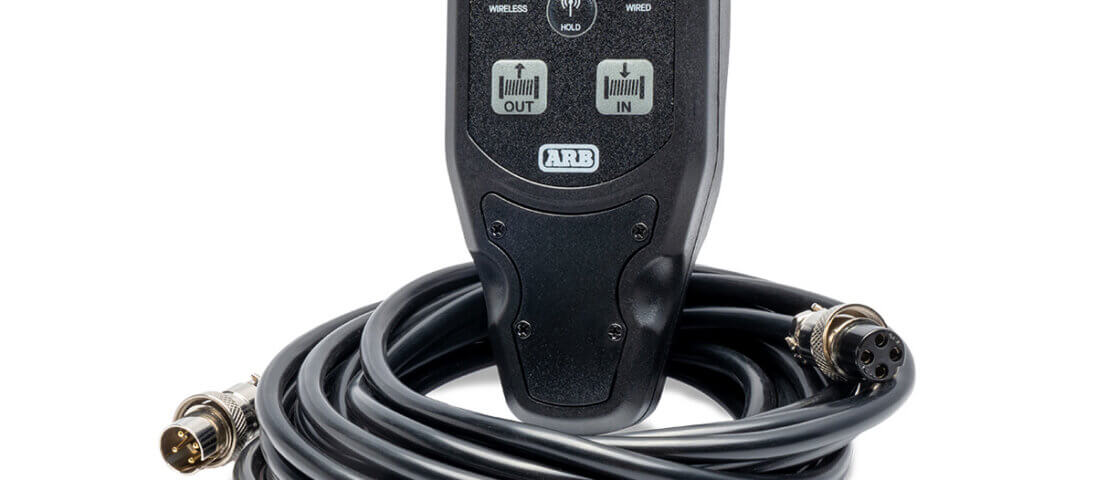

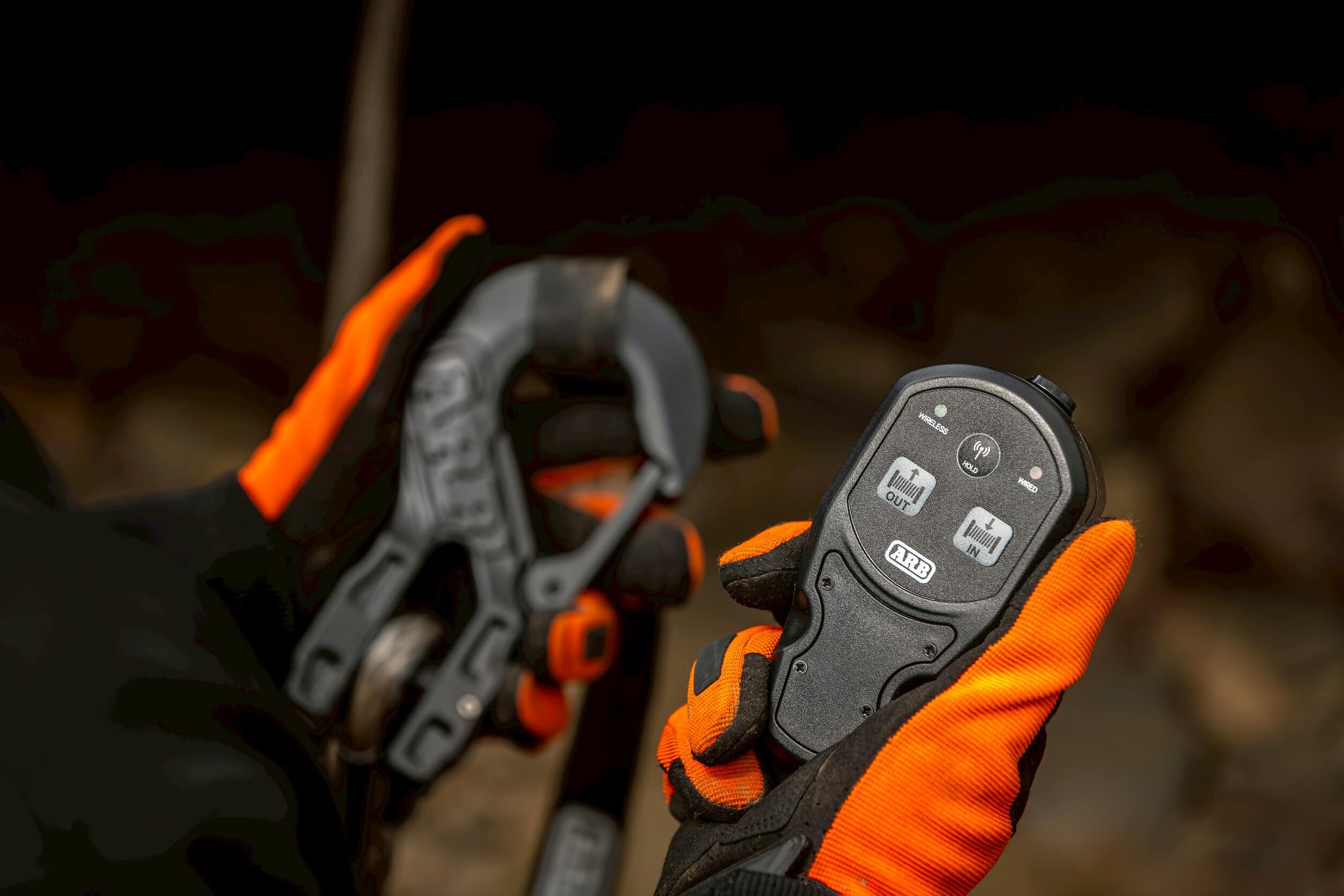

The compact hand controller connects with a wireless range up to forty meters or with a five meter lead. A power isolation switch comes standard with a universal bracket, stainless lanyard, and a dust cover.

  • Compact hand controller with 40m range and 5m lead
  • Remote-mounted control plug for hidden installs
  • 2.4GHz wireless connection prevents interference
  • 500A power isolation switch with stainless lanyard and cover

1500x1500 Winch Image 3

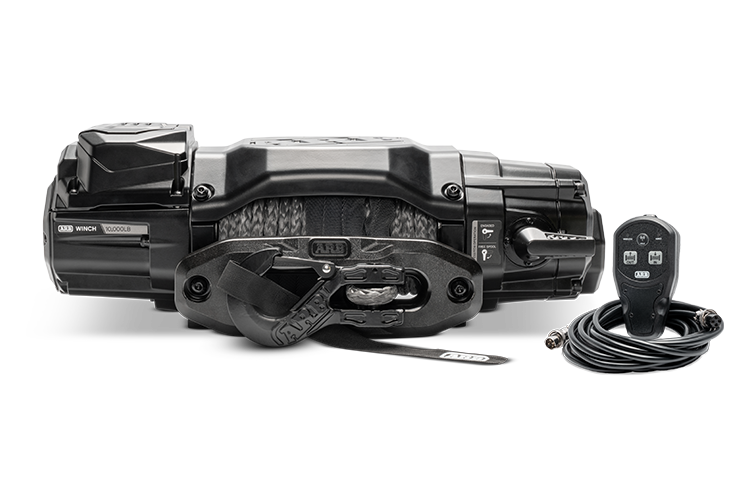

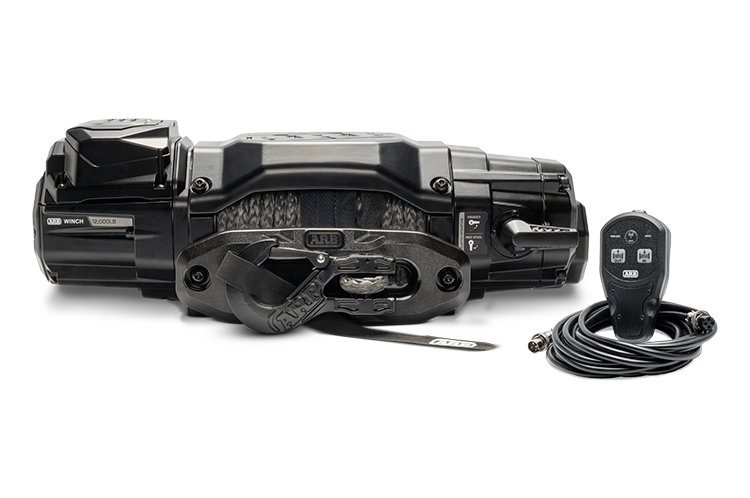

ARB 10K Winch ARB 12K Winch
ARB 10K Winch ARB 12K Winch
RATED LINE PULL 10,000 LBS | 4,536kg 12,000 LBS | 5,443kg
ROPE 10mm x 28m Grey Synthetic 11mm x 24m Grey Synthetic
FAIRLEAD Forged 6061 Aluminum Hawse Fairlead Forged 6061 Aluminum Hawse Fairlead
FITTED WEIGHT 73.5 LBS | 33.3kg 76 LBS | 34.5kg
MAX. LINE SPEED 60 FT / MIN 65 FT / MIN
MOTOR 5.3 HP 5.7 HP
ELECTRICAL CONTACTOR Albright DC Contactor – 500 Amp Albright DC Contactor – 500 Amp
BRAKE Gearbox Mounted 100% Load Holding Proportional Friction Brake Gearbox Mounted 100% Load Holding Proportional Friction Brake
GEARBOX 171:1 2-Stage Planetary and 2-Stage Spur 171:1 2-Stage Planetary and 2-Stage Spur
WATERPROOF RATINGS IP68 Winch Motor and Gearbox IP68 Winch Motor and Gearbox
INCLUDES Main Power Isolation Switch and Remote Mounted Control Plug Main Power Isolation Switch and Remote Mounted Control Plug
WARRANTY Limited Lifetime Warranty and 7-Year Electrical Warranty Limited Lifetime Warranty and 7-Year Electrical Warranty
