Vital for rural and remote area travel, ARB bull bars will provide substantially improved protection for vulnerable mechanical components against animal strikes whilst providing a solid base for mounting other accessories like driving lights, winches and CB antennas.
ARB bars are superbly engineered and manufactured to not only maintain maximum functionality, but also to ensure they complement the look of the vehicle.

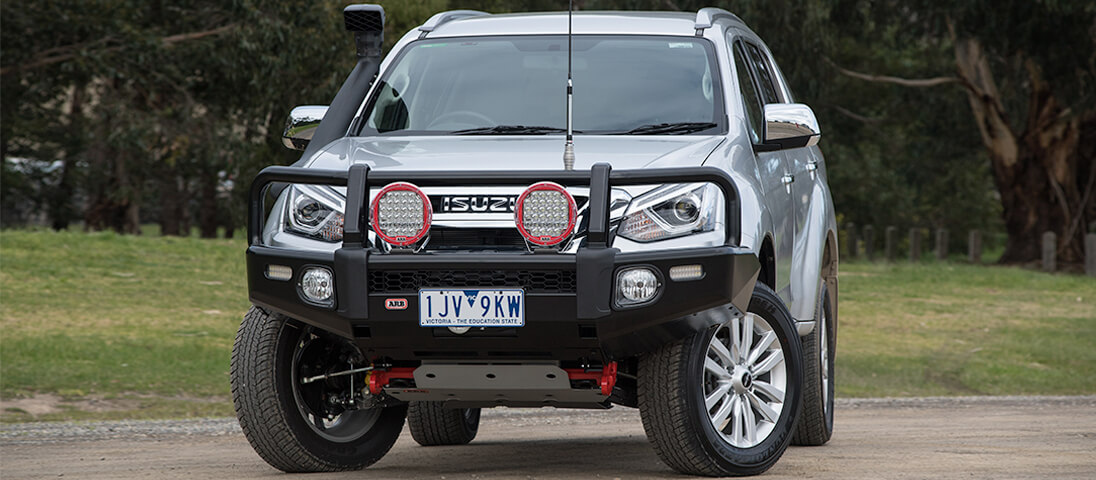

SUMMIT BULL BAR
The Summit bull bar builds on the renowned ARB Deluxe bar architecture, and integrates a fresh and contemporary design language to complement modern vehicles.
Available for MU-X models, Summit bars are winch compatible and provide next generation protection and styling for your vehicle. Laser cut holes for mounting ARB Intensity LED, IPF and Bushranger driving lights are integrated into the top pan of the bar, while ARB’s LED, indicator and clearance light assembly is included as standard.
Supplied in a durable black satin powdercoat finish, colour coding is available as an option for a fully integrated look.

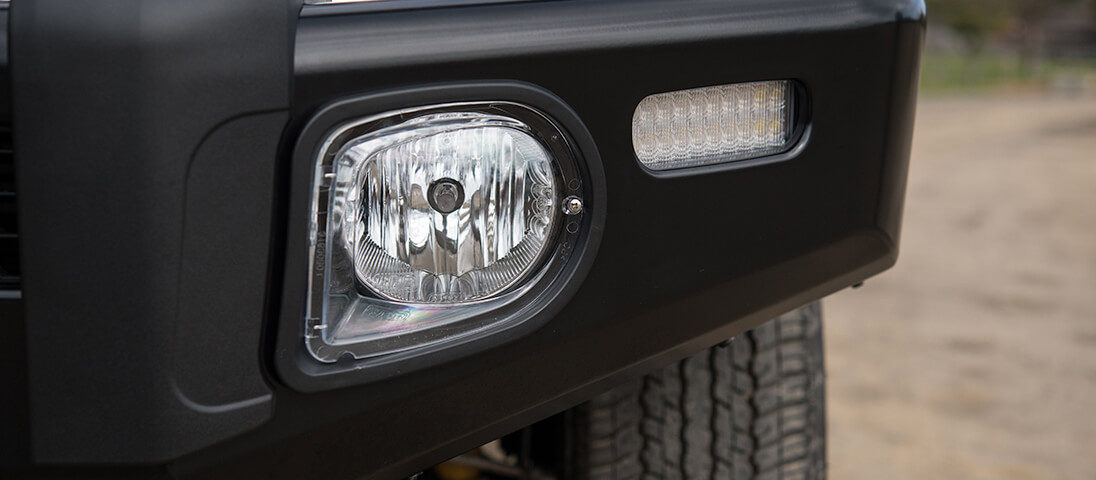

Note: Bar shown with optional fog light kit.
FEATURES
Vehicle specific design to complement the Isuzu MU-X 2017+
Durable steel construction for maximum protection
Incorporates ARB’s renowned multi-fold upswept and tapered wing design for optimum strength and approach angle
30mm edge radius on wings and centre section
Superbly engineered, air bag compatible mounting system secures to chassis via high tensile bolts and hardware
Split pan design for maximum strength and airflow
Three piece grille design for split pan
Extensive centre protection panels on centre and either side

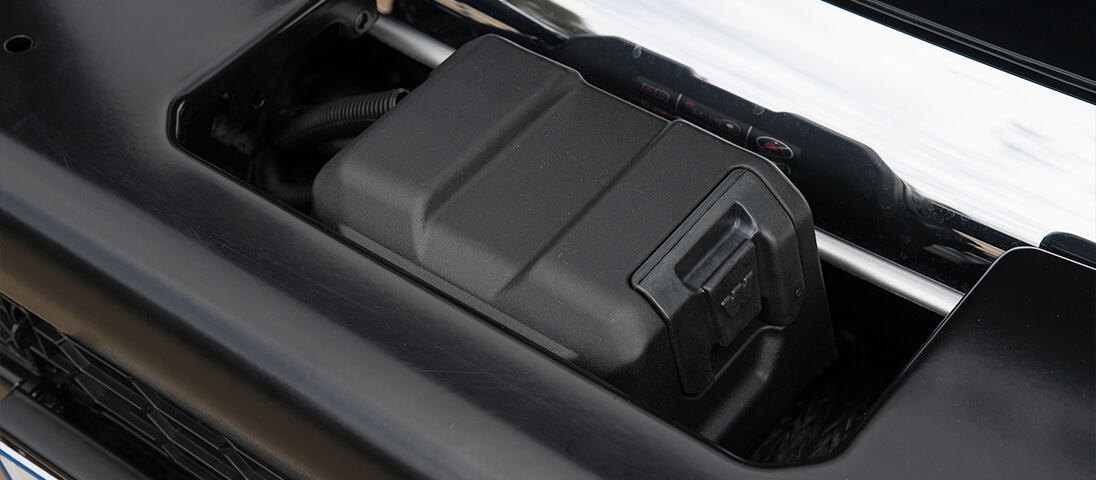

Pressed form top pan and aluminium winch cover panel
Anti-reflective tape kit is included to eliminate glare from the DRL’s on the outer frame of the Summit bar
Twin Hi-Lift jack points located below each buffer for optimum strength
Durable two piece buffers

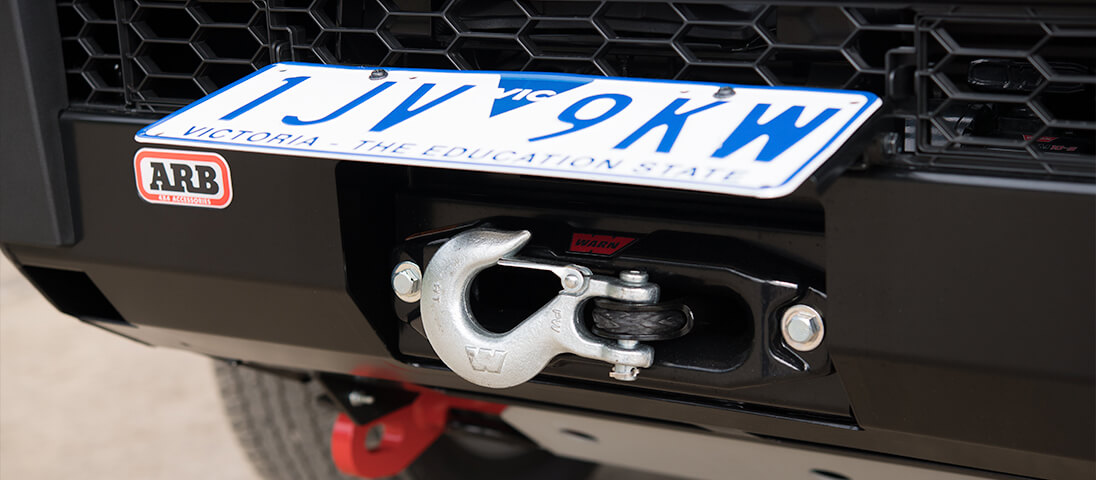

Will accommodate Warn, Magnum, Bushranger and Smittybilt low mount model electric winches up to 10,000lb
Provision to accommodate ARB Intensity LED, and a range of IPF and Bushranger driving lights

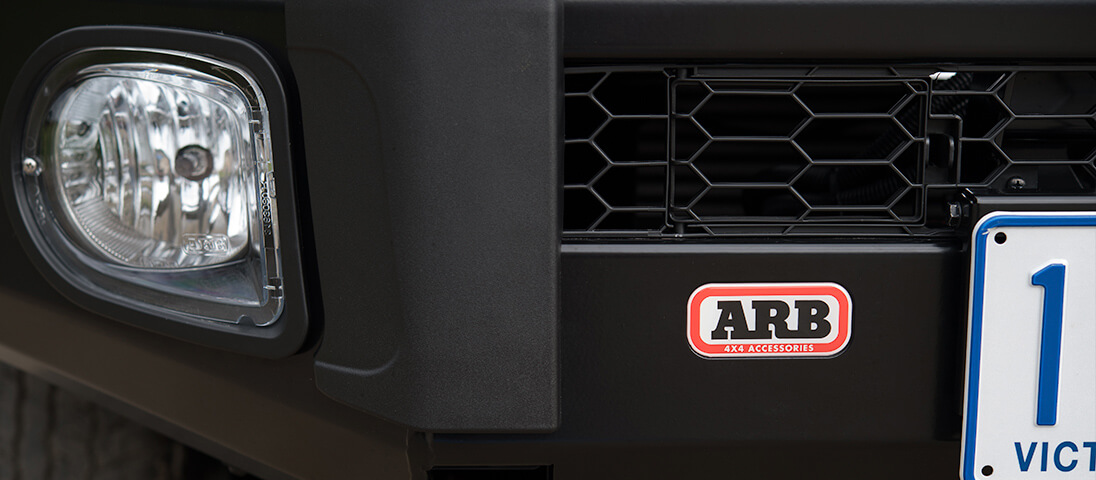

Provision for optional ARB fog light kit
Provision for optional ARB fog light covers
Provision for optional Summit Roller Fairlead Cover
Includes ARB LED, indicator & clearance light
Two aerial brackets located on the top of the centre frame
Zinc rich primer for additional rust resistance
Finished in a hard wearing satin black powder coat with the added option of colour coding to individual vehicles

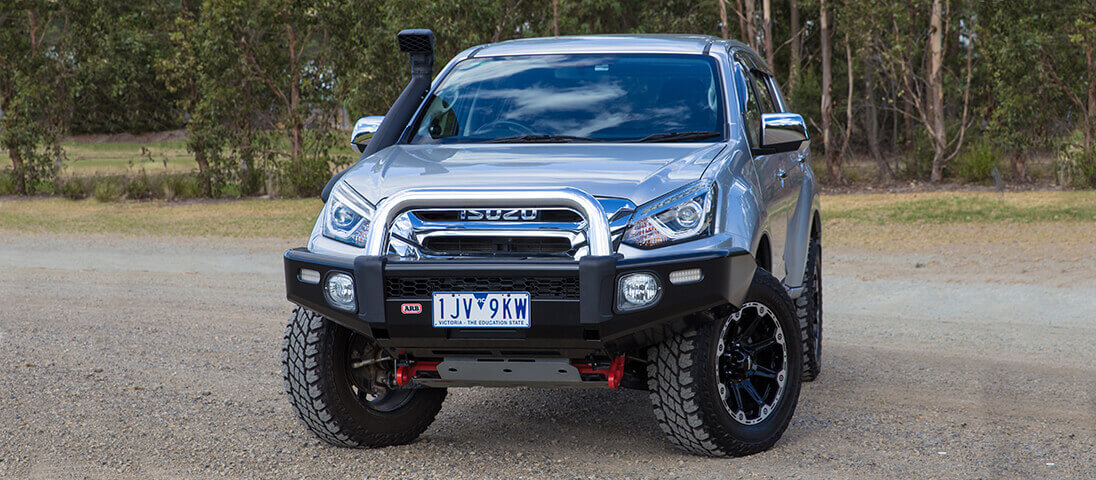

SUMMIT SAHARA BAR
Similar to the Summit bull bar, the Summit Sahara bar offers a stylish alternative that complements the vehicle design, whilst retaining many of the strength and protection features.
Offering significantly greater protection than the factory bumper, the Summit Sahara bar is available with or without the polished centre tube, and can accommodate a selection of Warn, Magnum, and Bushranger low mount winches.
Optional fog lights and colour coding can also be specified.
FEATURES
Vehicle specific design to complement the Isuzu MU-X 2017+ model.
Durable steel construction for maximum protection
Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle
Split pan design for maximum strength and airflow
Three piece grille design for split pan
Extensive protection panels on centre and either side
Superbly engineered, air bag compatible mounting system secures to chassis via high tensile bolts. Mount system includes chassis reinforcing 10,000lb winch compatibility.
Will accommodate Warn, Magnum and Bushranger and Smittybilt low mount model electric winches up to 10,000lb
Pressed form top pan and aluminium (powder coated black) winch cover panel
Twin Hi-Lift jacking points located beneath each buffer for optimum strength
Includes ARB LED, indicator and clearance light
Provision to accommodate ARB Intensity LED, and a range of IPF and Bushranger driving lights

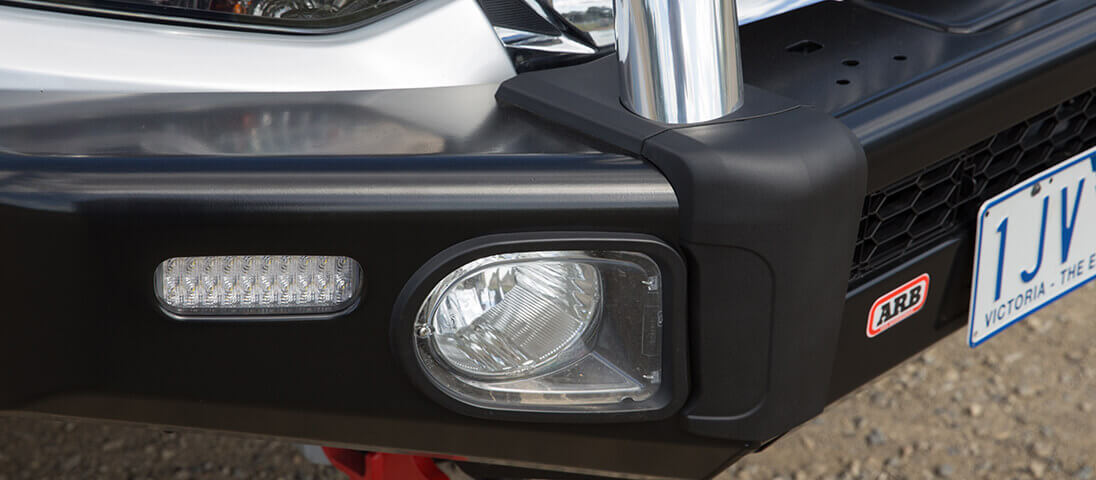

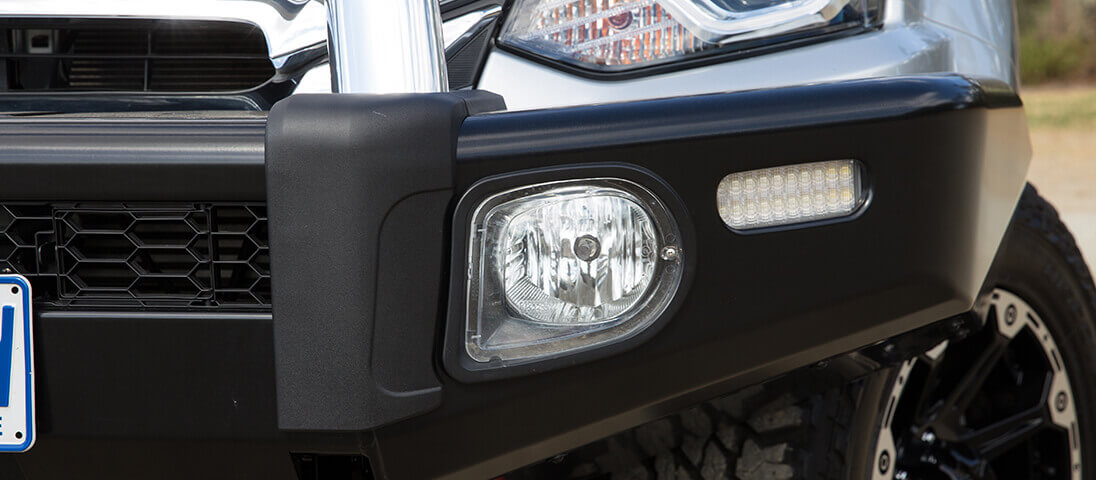

Provision for optional ARB fog light kit
Provision for optional fog light covers
Provision for optional Summit Roller Fairlead Cover
Durable two piece buffers

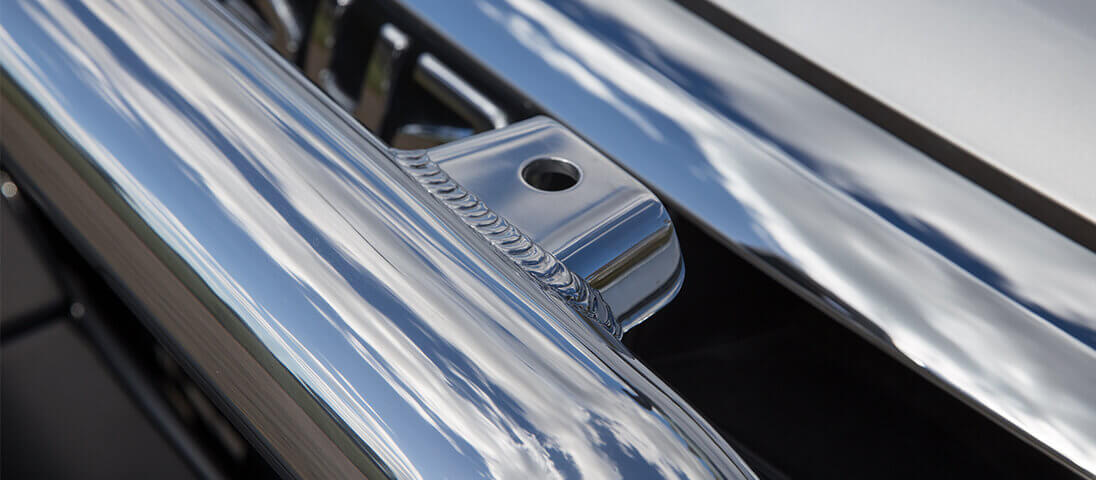

Two aerial brackets located on the top of the centre tube. Additional provision on centre pan when no tube kit fitted.
Zinc rich primer for additional corrosion resistance
Finished in a satin black powder coat with the added option of colour coding to individual vehicles
BULL BAR PRODUCTION STEPS
Laser Cutting
Every bumper starts its life as a flat sheet of steel. Individual components are cut to shape using ARB's state of the art, computer aided laser cutters which can cut to a tolerance of just 0.2mm with no heat distortion, resulting in superior surface finishes and accuracy.
Folding
Individual components are then folded to make up the sections of the bumper using a Computer Numerically Controlled (CNC) machine which ensures maximum accuracy and consistency. Most bumpers utilise ARB's five fold design, with each fold providing additional strength.
Tube Work
ARB Bumpers are made with strong 2.6mm wall thickness tubing. The tube is cut to the desired length and bent with a CNC Eagle internal mandrel bender ensuring consistency, accuracy and an even wall thickness accross all sections.
Robot Welding
Once folded, each section is welded utilizing a robot welder. Robot welders are used for straightforward, repetitive welding jobs that require deep penetration, speed and accuracy.
Assembly
When individual components are complete, the bumper is assebled. All sections including pan, wing, uprights, outer frame and chassis brackets are placed in a jig and tack welded. This is followed by finish welding and grinding for strength and aesthetics. Jigs are assessed regularly to ensure accuracy.
Post Assembly
To complete the manufacturing process all ARB bumpers are shot blasted, before entering a 5 stage chemical wash to prepare the surface for maximum powder adhesion. They're then powder coated and oven baked to ensure a rich and durable finish. As well as being an attractive and durable finish, powder coating provides an excellent base for painting if colour coding is required.
