ARB BULL BARS

Vital for rural and remote area travel, ARB bull bars will provide substantially improved protection for vulnerable mechanical components against animal strikes whilst providing a solid base for mounting other accessories like driving lights, winches and CB antennas.

ARB bars are superbly engineered and manufactured to not only maintain maximum functionality, but also to ensure they complement the look of the vehicle.

SUMMIT BULL BAR

The Summit bull bar builds on the renowned ARB Deluxe bar architecture and integrates a fresh and contemporary design language to complement modern vehicles.

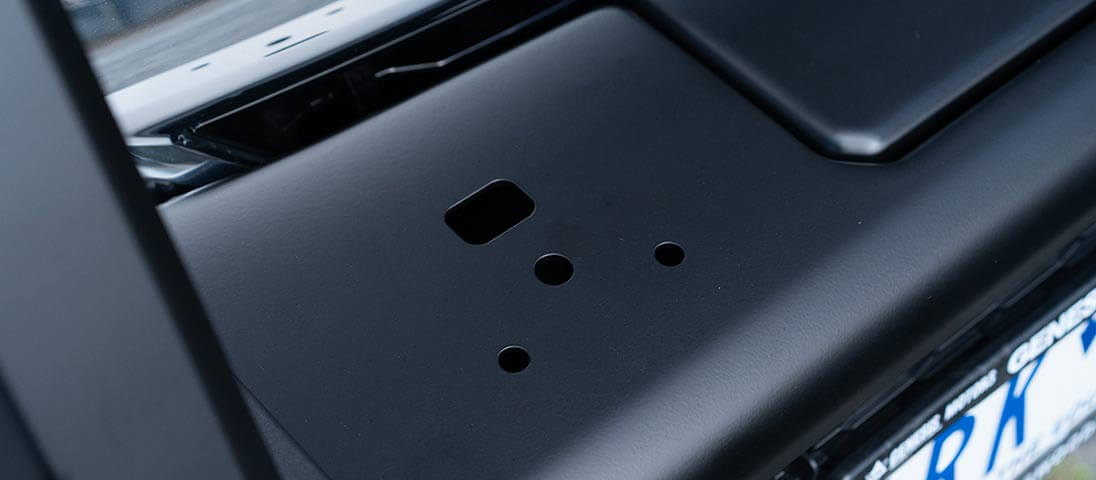

Available for Isuzu D-Max 2021 4×2 High Ride and 4×4 SX, LS-M and LS-U models, Summit bars are winch compatible and provide next-generation protection and styling for your vehicle. Laser-cut holes for mounting ARB Intensity LED, IPF and Bushranger driving lights are integrated into the top pan of the bar, while ARB’s LED, indicator and clearance light assembly is included as standard.

Finished in a matt black powder coat, with the option to colour code to vehicle colour for a fully integrated look.

ARBSummitBullBar_for2021IsuzuDMax_img1

FEATURES

  • Vehicle specific design to complement the Isuzu D-Max 2021+
  • Durable steel construction for maximum protection
  • Incorporates ARB’s renowned multi-fold upswept and tapered wing design for optimum strength and approach angle
  • 30mm edge radius on wings and centre section
  • Engineered, airbag compatible mounting system secures to chassis via high tensile bolts
  • Split pan design for maximum strength and airflow
  • Three piece grill design for split pan
  • Extensive protection panels on centre and either side
  • Pressed form top pan and aluminium (powder coated matte black) and winch cover panel
  • Twin ARB Jack or Hi-Lift jack points located below each buffer for optimum strength
  • Durable two piece buffers
  • Will accommodate Warn, Magnum, Bushranger and Smittybilt low mount model electric winches up to 10,000lb

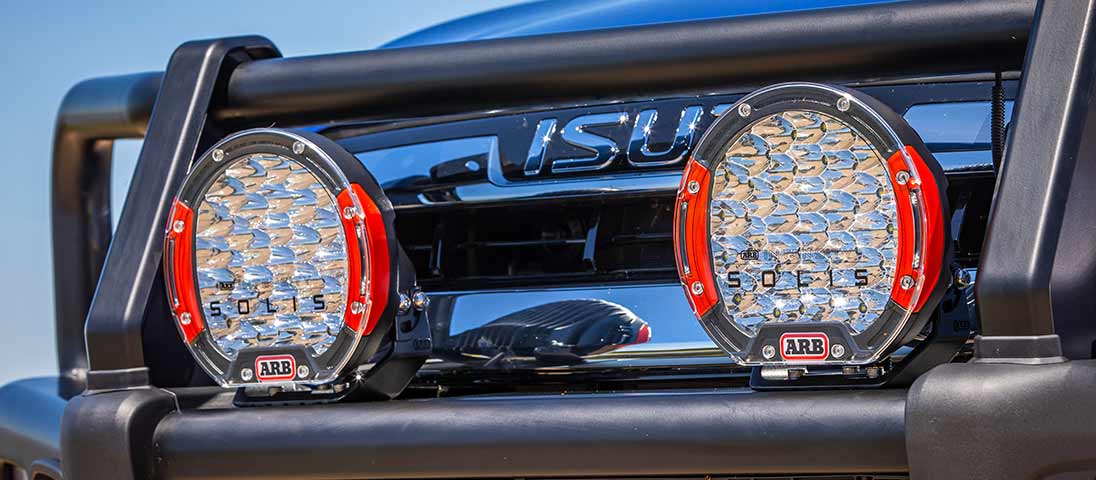

  • Provision to accommodate ARB Intensity and Solis LEDs, as well as a range of IPF and Bushranger driving lights
  • Provision for ARB fog lights
  • Provision for optional ARB fog light covers
  • Provision for optional Summit Roller Fairlead Cover
  • Includes ARB LED, indicator & clearance light

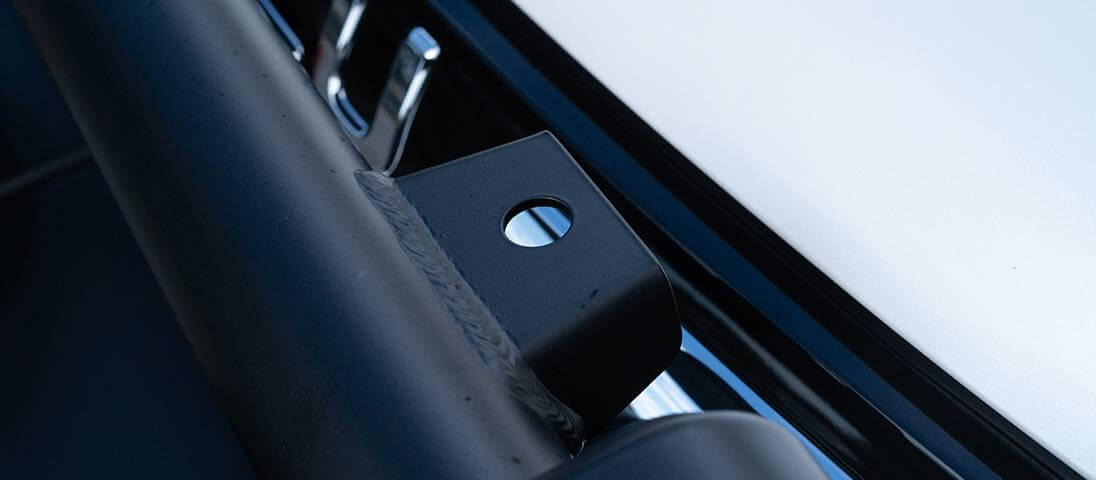

  • Two aerial brackets located on the top of the centre tube
  • Corrosion-resistant primer
  • Finished in matte black powder coat with the option to colour code to vehicle colour for a fully integrated look

BULL BAR PRODUCTION STEPS

ARB_Factory_01-04_003_edit-1096×480

Laser Cutting

Every bumper starts its life as a flat sheet of steel. Individual components are cut to shape using ARB's state of the art, computer aided laser cutters which can cut to a tolerance of just 0.2mm with no heat distortion, resulting in superior surface finishes and accuracy.
