ARB Bull Bars

Vital for rural and remote area travel, ARB bull bars will provide substantially improved protection for vulnerable mechanical components against animal strikes whilst providing a solid base for mounting other accessories like driving lights, winches and CB antennas.

ARB bars are superbly engineered and manufactured to not only maintain maximum functionality, but also to ensure they complement the look of the vehicle.

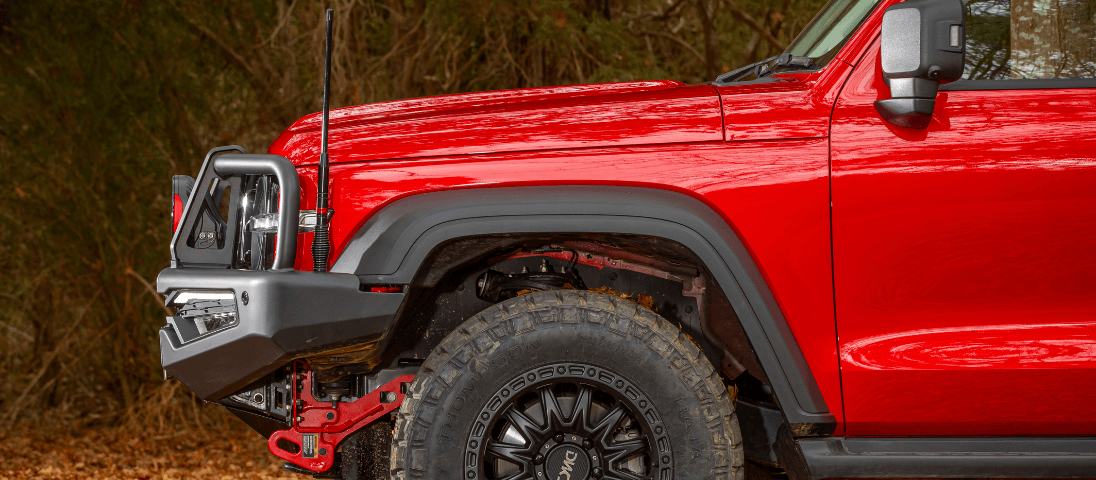

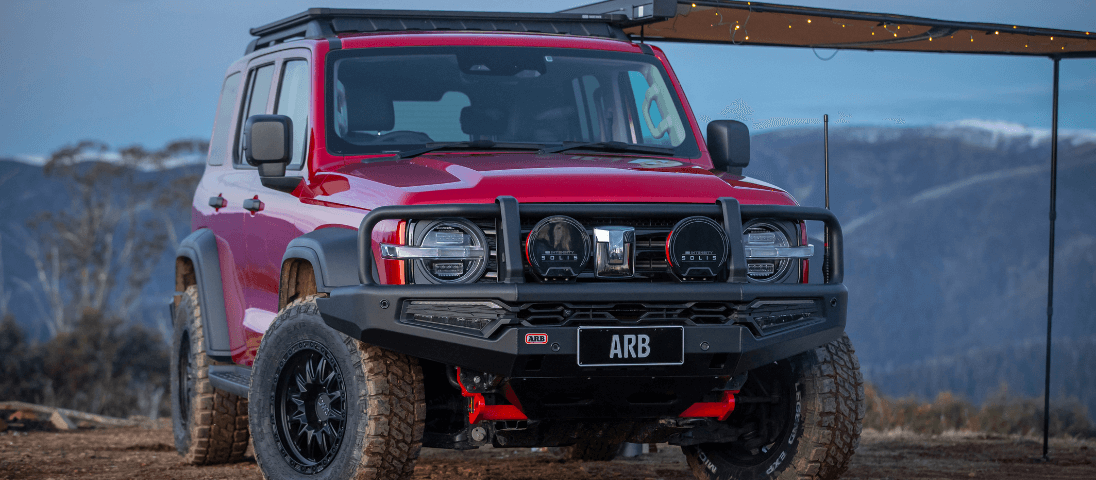

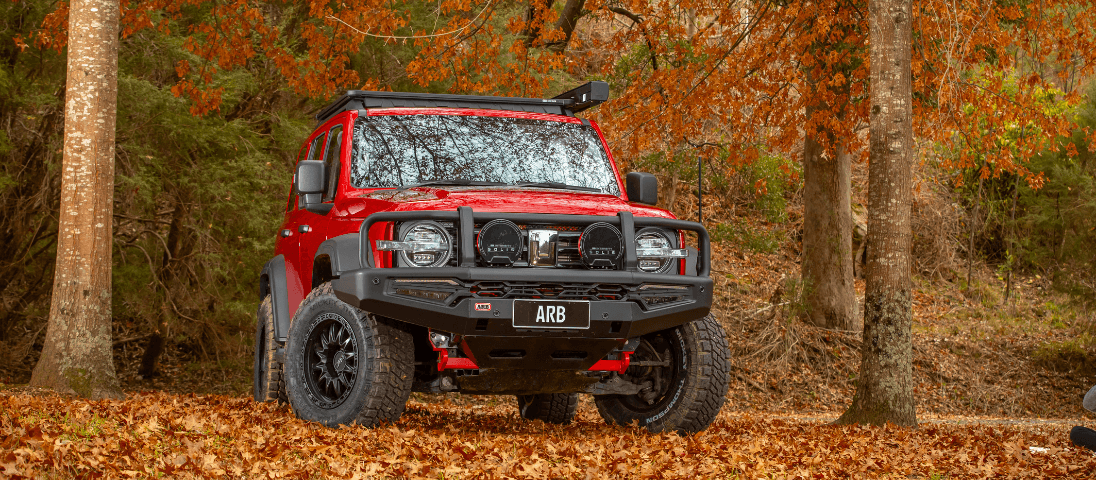

Summit MKII Bar

The ARB Summit MKII Bar muscles up with the most innovative and advanced technology yet, all while fully integrating with GWM’s suite of advanced driver assist safety technology.

The state-of-the-art Summit MKII Bar takes key components of its flagship namesake and kicks it up a notch with an ultra-modern design that’s constructed to turn heads.

no1-image-1096x480px
no2-image-1096x480px
no3-image-1096x480px
no4-image-1096x480px
no5-image-1096x480px
no6-image-1096x480px

Features

  • Vehicle specific design suitable for the MY22 on GWM Tank 300
  • Registered design of styling and design components
  • Durable steel construction for maximum protection
  • Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle
  • 30mm radius on wings and centre section
  • 47.6mm outer frames and centre cross tube

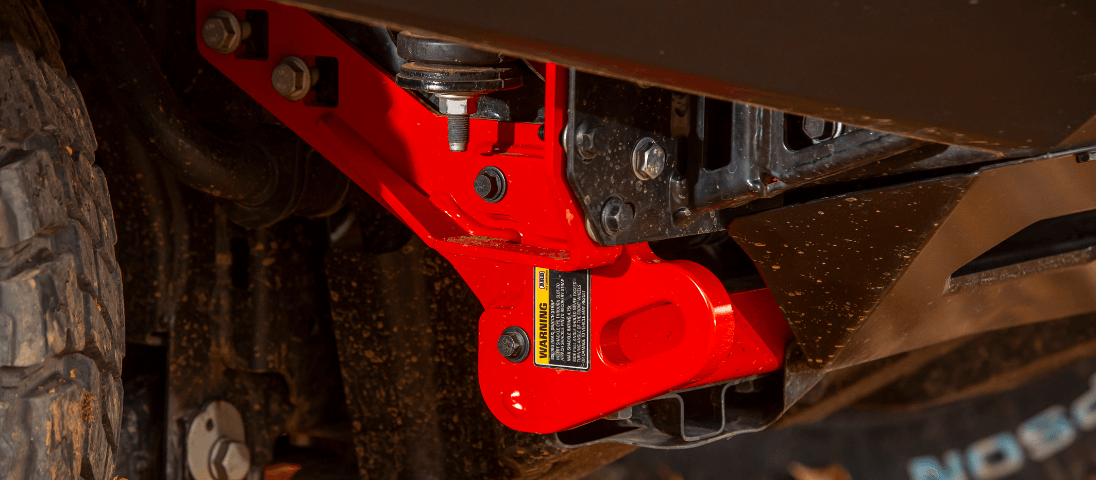

  • Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts
  • Split pan design for maximum strength and airflow
  • Extensive protection panels on centre and either side
  • Pressed form top pan and aluminium (powder coated matt black) winch cover panel
  • Twin ARB Jack or Hi-Lift Jack points located in the lower pan

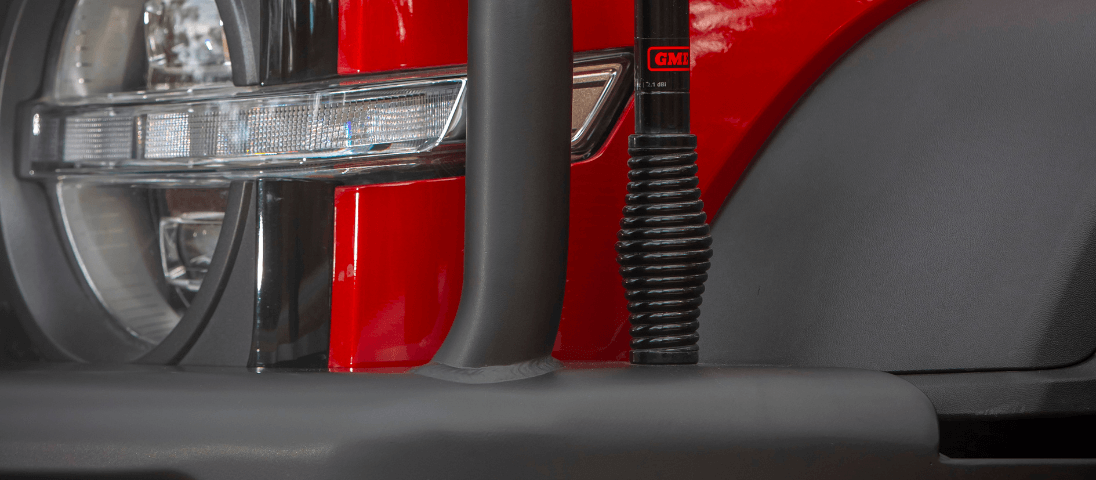

  • Two aerial brackets located on the bar wings
  • Will accommodate Warn, Magnum, Bushranger, Smittybilt low mount model electric winches up to 10,000lb

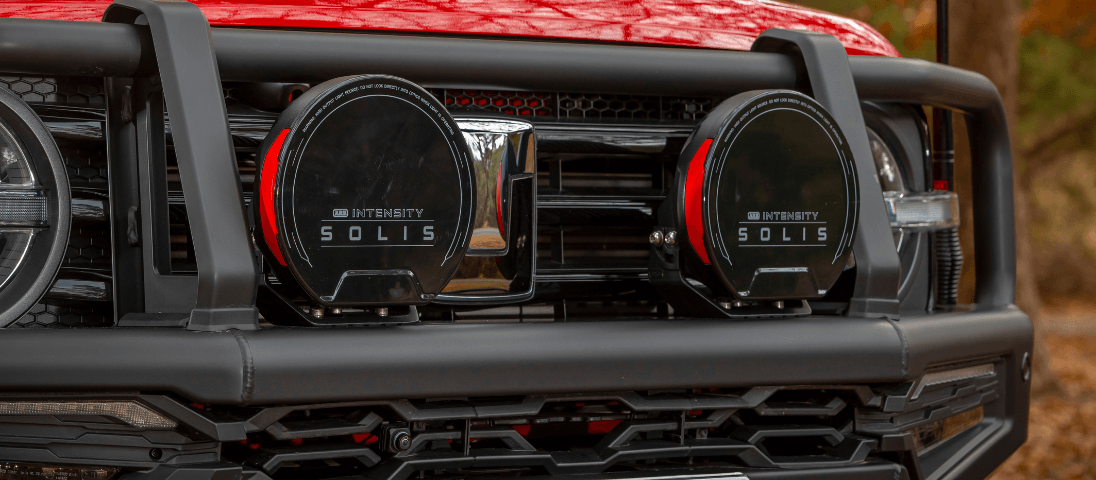

  • Provision to accommodate ARB Intensity and Intensity Solis LEDs and a range of Bushranger and IPF lights
  • Includes ARB LED fog light, LED daytime running light and LED sequential indicators and clearance lights
  • Compatible with original equipment safety features (refer below)
  • Metaprep primer for additional corrosion resistance
  • Finished in matt black powder coat

Bull Bar Production Steps

ARB_Factory_01-04_003_edit-1096×480

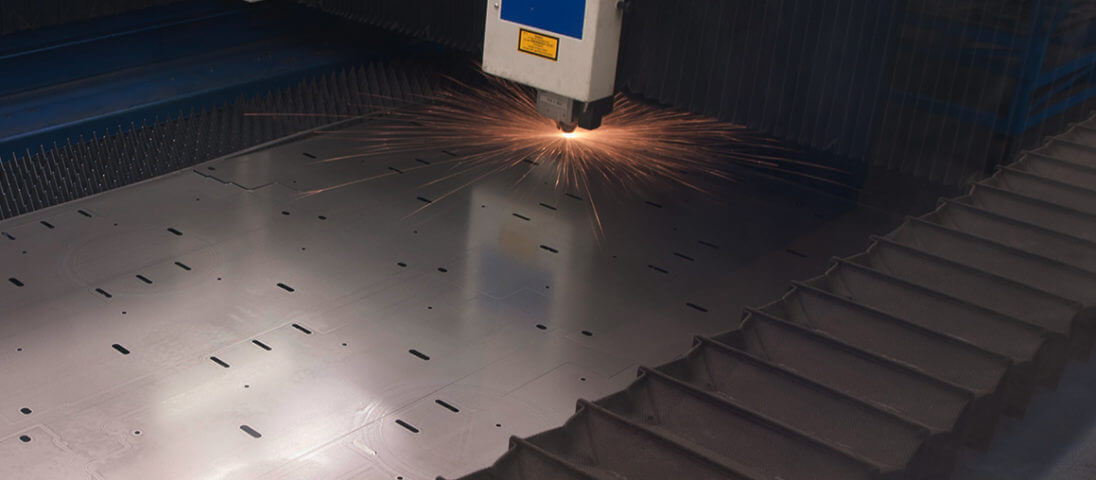

Laser Cutting

Every bull bar starts its life as a flat sheet of steel. Individual components are cut to shape using ARB’s state of the art, computer aided laser cutters which can cut to a tolerance of just 0.2mm with no heat distortion, resulting in superior surface finishes and accuracy.

ARB_Factory_01-04_059_edit-1096×480

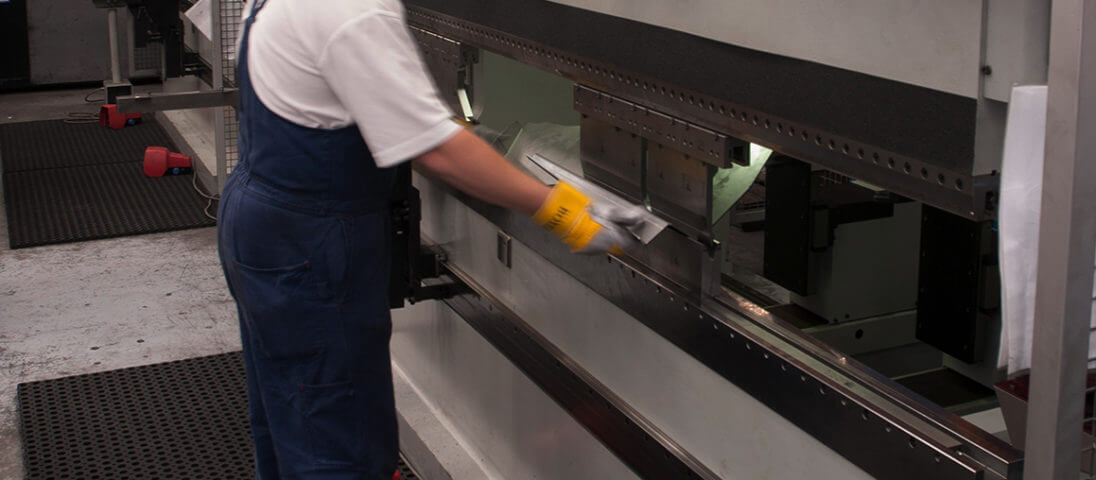

Folding

Individual components are then folded to make up the sections of the bull bar using a Computer Numerically Controlled (CNC) machine which ensures maximum accuracy and consistency. Most bull bars utilise ARB’s five fold design, with each fold providing additional strength.

ARBFactoryEtc1212_052_edit-1096×480

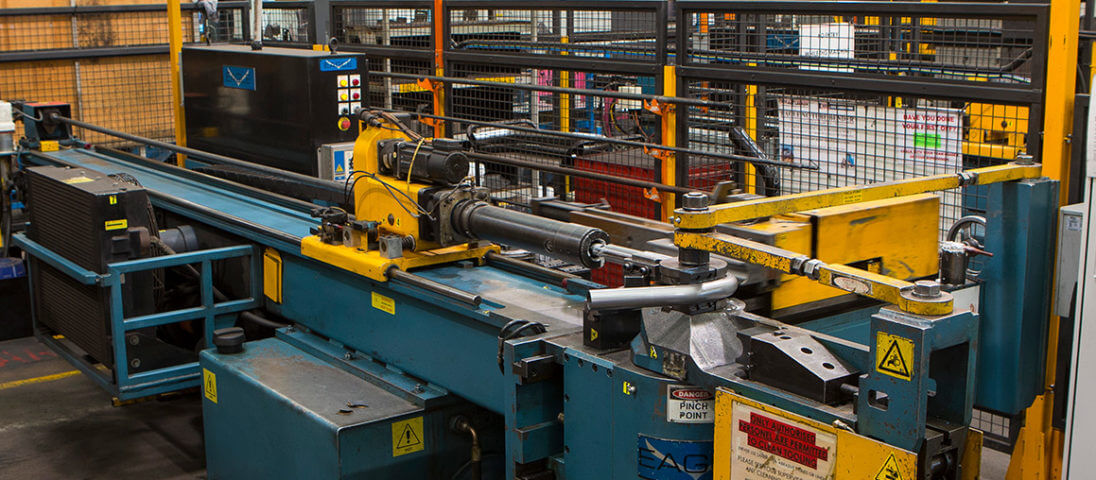

Tube Work

ARB bull bars are made with strong, 2.6mm wall thickness tubing. The tube is cut to the desired length and bent with a CNC Eagle internal mandrel bender ensuring consistency, accuracy and an even wall thickness across all sections.

ARBFactoryEtc1212_092_edit-1096×480

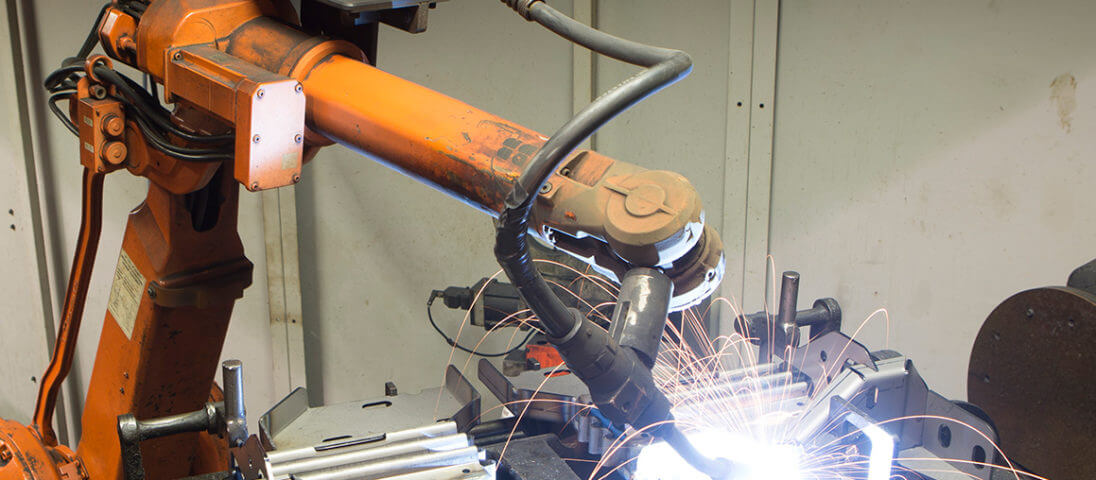

Robot Welding

Once folded, each section is welded utilising a robot welder. Robot welders are used for straightforward, repetitive welding jobs that require deep penetration, speed and accuracy.

ARBFactoryEtc1212_106_edit-1096×480

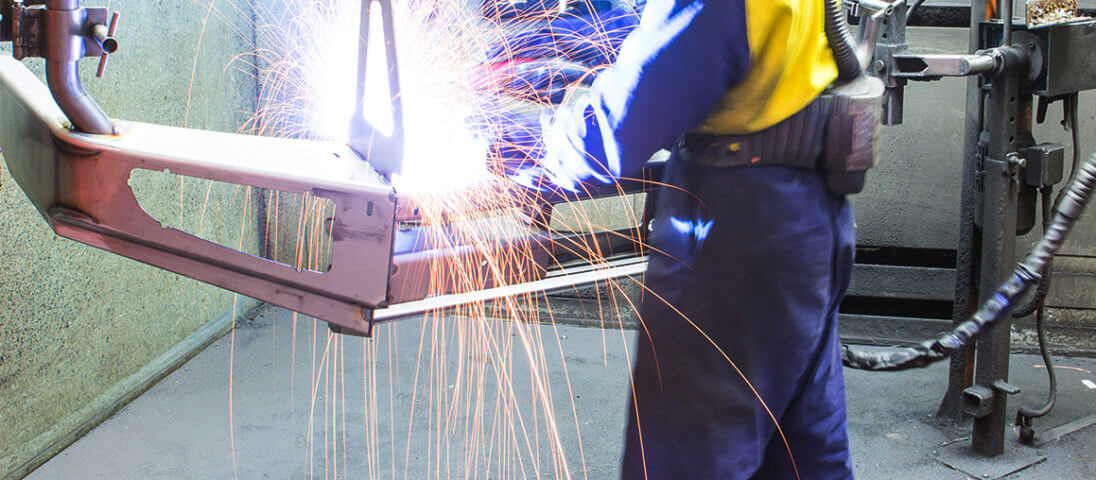

Assembly

When individual components are complete, the bull bar is assembled. All sections including pan, wing, uprights, outer frame and chassis brackets are placed in a jig and tack welded. This is followed by finish welding and grinding for strength and aesthetics. Jigs are assessed regularly to ensure accuracy.
